Music Tesla Coil Driver Board with 20cm Arc Discharge for Educational and Display Applications

This Solid State Tesla Coil (SSTC) driver board provides a complete high-voltage generation system for creating visible electrical arcs synchronised to audio input. Designed for educational demonstrations, science displays, and visual effects applications, the unit operates directly from standard 220V AC mains power without requiring complex grounding arrangements. The integrated arc extinguishing isolation device enhances operational safety, while the compact aluminium chassis houses robust electronics capable of producing arcs up to 20cm in length. With coaxial cable signal transmission maintaining audio fidelity and a comprehensive control system, this kit offers accessible high-voltage experimentation without extensive electrical expertise.

Features and Construction

The driver board combines practical functionality with safety-conscious design elements suitable for educational environments and display applications. The aluminium chassis provides both structural support and heat dissipation for the internal electronics during operation.

Material and Build

The aluminium construction offers durability while keeping the total unit weight to approximately 1kg for reasonable portability. The chassis dimensions of 100mm width, 115mm depth, and 205mm height create a compact footprint suitable for tabletop demonstrations. Internal components include the 200VA capacity driver board with coaxial signal transmission circuitry, designed to handle an average power of 250W with an input voltage range accommodating both 110V and 240V AC systems. The arc extinguishing isolation device represents a key safety feature, providing controlled discharge pathways.

Size and Practical Fit

With its 100 x 115 x 205mm dimensions, the unit occupies minimal space while housing the complete high-voltage generation system. The 1kg weight allows for secure placement on stable surfaces during operation. Connection points are conveniently located, with the 3.5mm audio port providing universal compatibility with music players, computers, and audio devices. The fibre optic connection between the main unit and controller ensures electrical isolation in the control signal path, while standard power and USB cables facilitate straightforward setup.

Uses and Placement

This Tesla coil driver board serves multiple applications ranging from educational demonstrations to visual display effects, with specific operational guidelines ensuring safe and effective use across different environments.

Event or Professional Use

For science exhibitions, museum displays, or educational demonstrations, the unit provides reliable high-voltage arc generation with built-in safety features. The 20cm maximum arc length creates impressive visual effects suitable for audience viewing, while the audio synchronisation capability allows for musical performances where electrical arcs dance to sound waveforms. Event organisers benefit from the straightforward 220V direct power connection without ground wire requirements, simplifying venue setup. The controller's potentiometer enables precise adjustment of arc brightness and intensity during live demonstrations.

Everyday Home Use

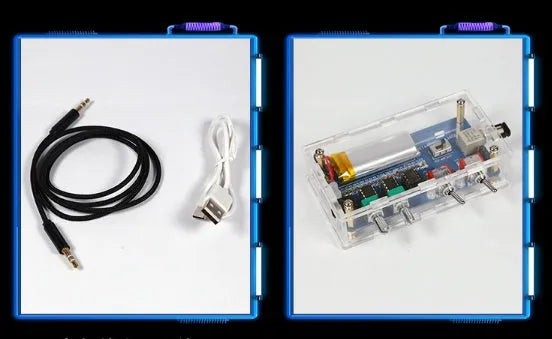

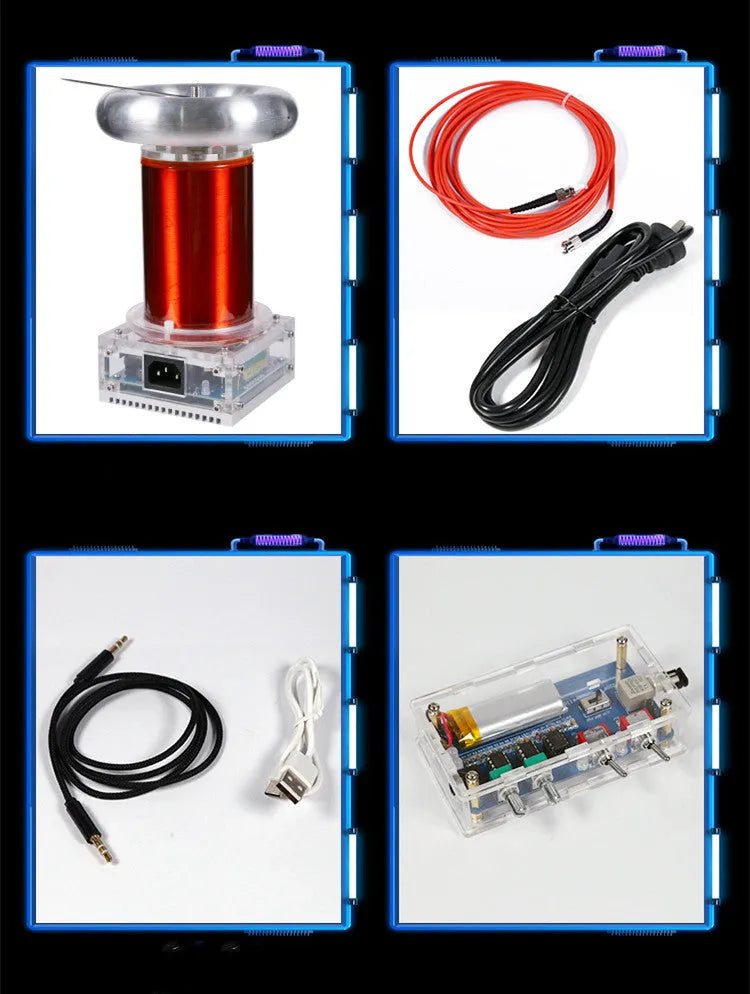

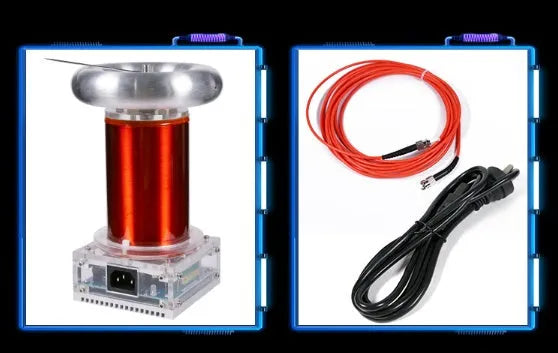

For enthusiasts and educators creating home demonstrations or educational projects, the compact design and complete kit approach reduce setup complexity. The included components – driver board, controller, fibre optic cable, power cable, audio cable, and USB cable – provide everything needed for initial operation. Safety protocols including the 0.5m minimum observation distance (1m recommended) and operational time limits of 3-5 minutes continuous use help maintain safe home experimentation. The thimble installation on the pressure equalisation ring, with 2-3cm extension beyond the ring, ensures proper arc formation before power application.

Benefits and Buying Value

The driver board offers practical advantages through its integrated design and safety-conscious operation, providing accessible high-voltage experimentation with clear usage boundaries.

Reuse and Low Maintenance

The robust aluminium construction and quality electronic components support repeated use across multiple demonstration sessions. Operational guidelines specifying 3-5 minute continuous operation intervals help prevent component overheating and extend product lifespan. The arc extinguishing isolation device reduces electrical stress on components during arc termination, while the coaxial signal transmission maintains consistent audio performance over extended use periods. With no consumable parts and minimal maintenance requirements beyond basic cleaning, the unit offers sustained value for regular educational or display applications.

Why Choose This Product

This Tesla coil driver board distinguishes itself through practical integration of safety features and operational conveniences. The ability to operate directly from 220V mains without ground wire requirements eliminates a common installation hurdle, while the 20cm arc generation capability provides impressive visual results. The comprehensive kit approach includes all necessary components for immediate operation, and the compact design facilitates transportation between demonstration locations. Clear operational limits and safety distances provide responsible usage guidelines, making this product suitable for both educational institutions and responsible enthusiasts seeking reliable high-voltage visualisation equipment.
