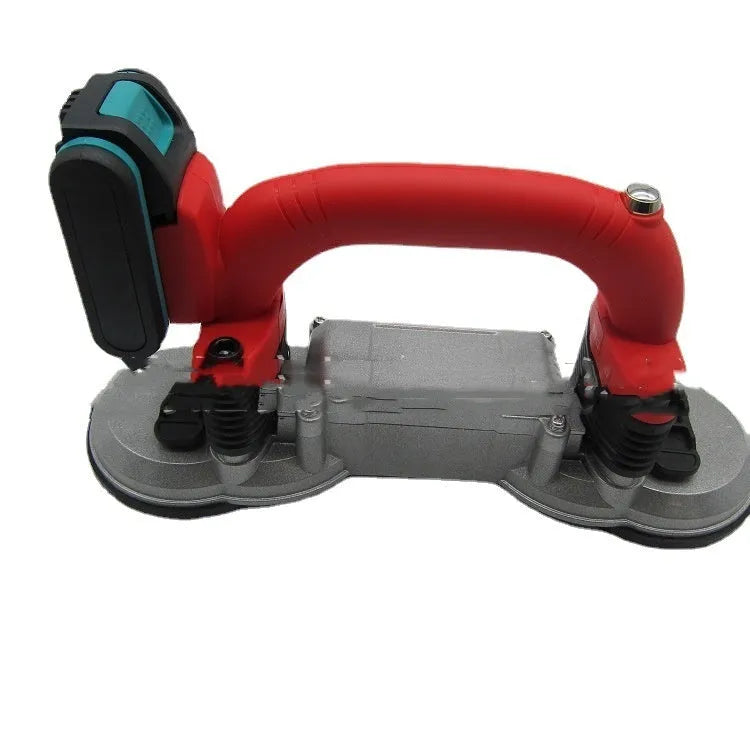

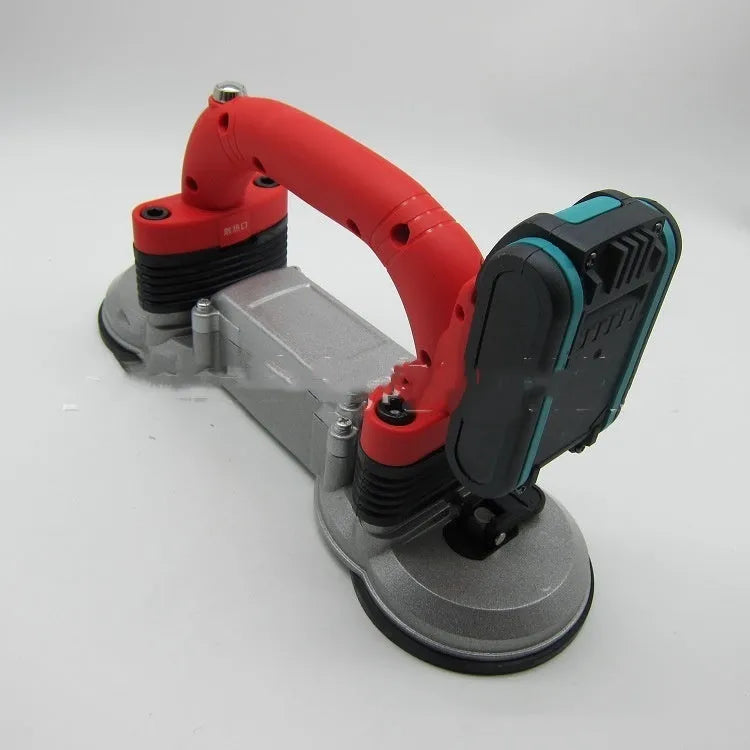

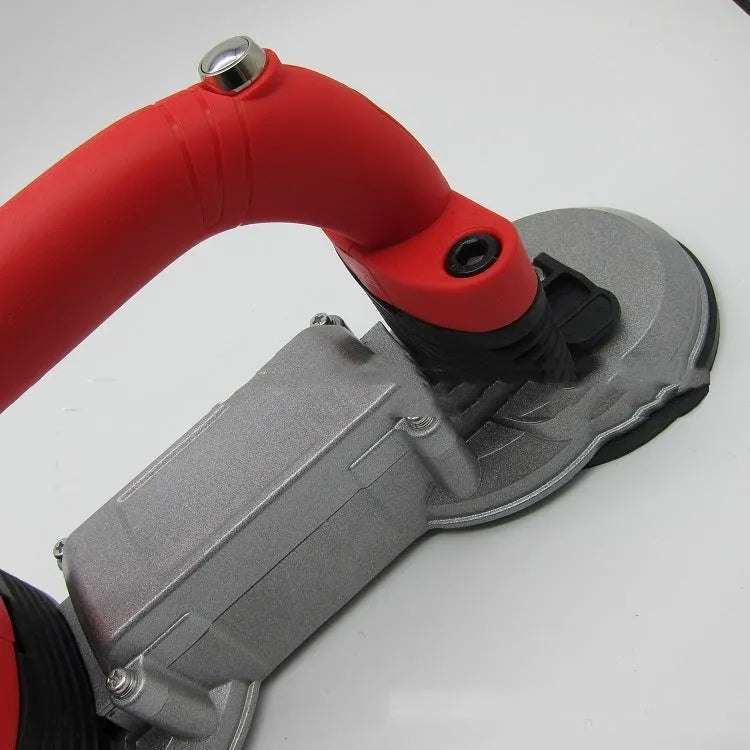

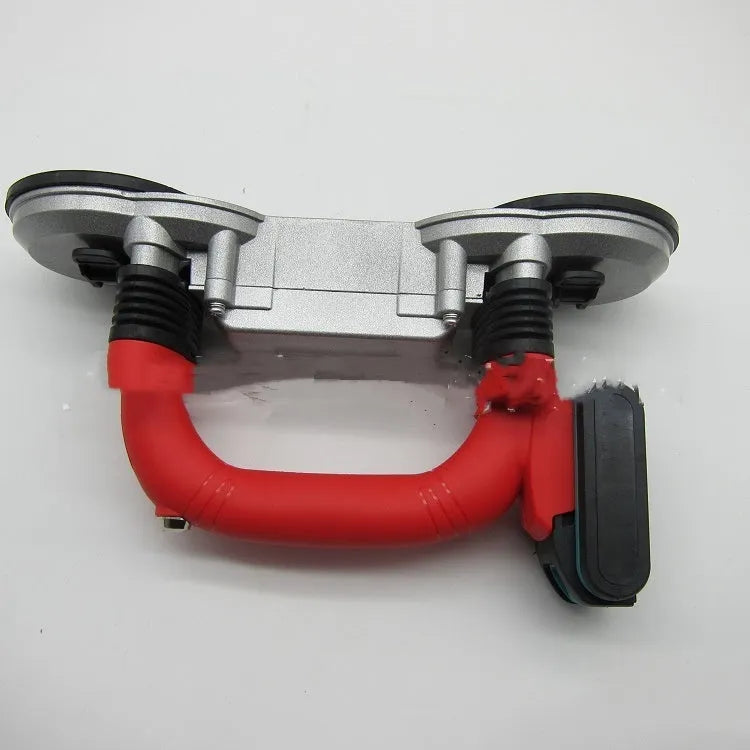

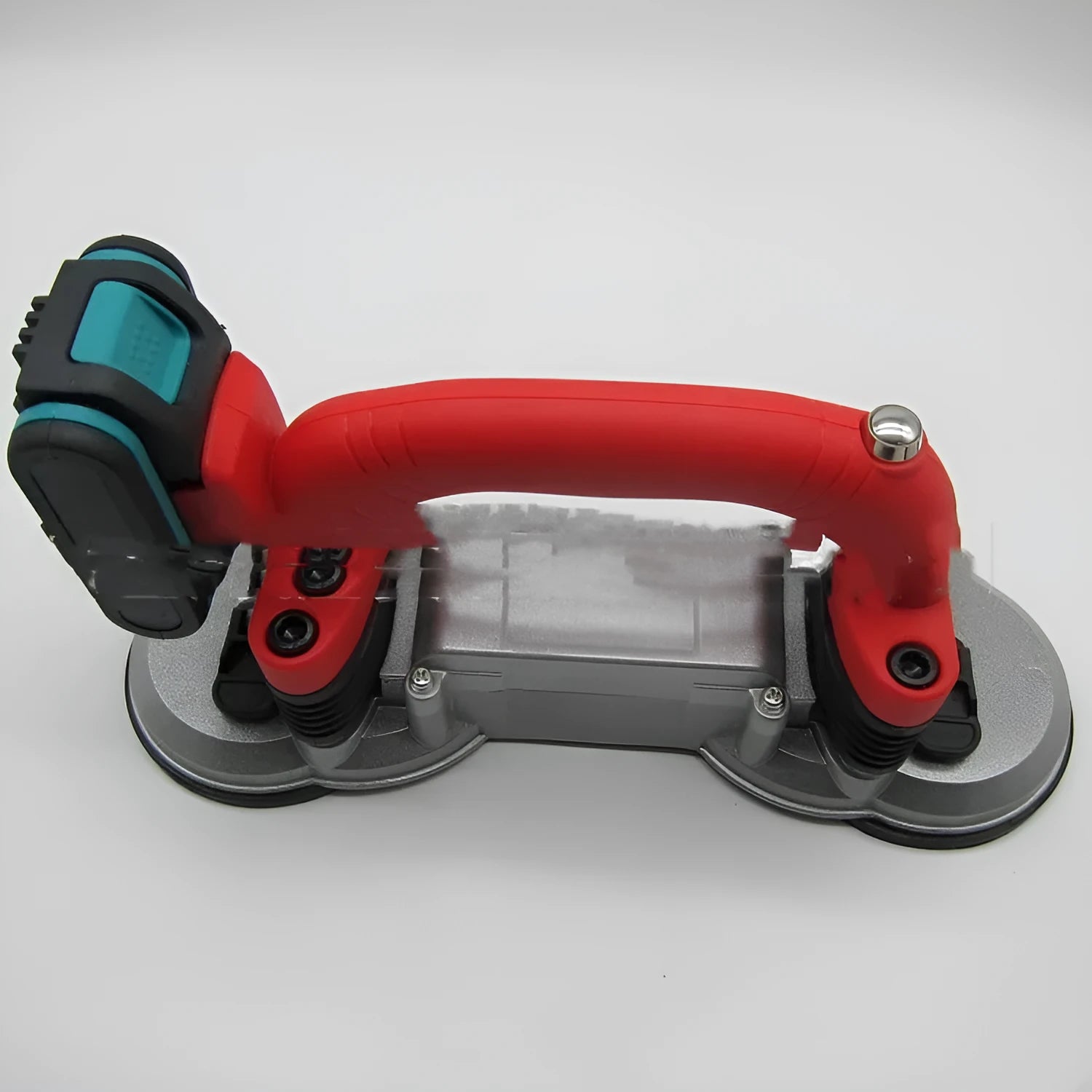

12V Lithium Battery Ceramic Tile Tiling Machine 2003B High Frequency Vibration Tool for Professional Tiling

Whether you are laying floor tiles in a new build or fixing wall tiles in a renovation, consistent tile placement is key to a professional finish. The 12V lithium battery ceramic tile tiling machine 2003B is a dedicated brick-laying tool designed to reduce hand fatigue and speed up repetitive tiling tasks. With high-frequency vibration and a powerful suction system, it helps tiles bed into adhesive evenly, cutting down on manual tapping and levelling. Its cordless operation means you can move freely around a job site without trailing cables.

Vibration and Power Specifications

The tiling machine is built around a brushless motor that delivers a vibration frequency of 12000R/min. This high-speed oscillation helps settle tiles into position firmly, a method widely used by professional tilers to avoid lippage and uneven surfaces.

190W Output Power

The 190W output power provides enough energy for continuous operation on ceramic tiles during a standard working day. The motor is rated for the voltage and power draw, making it suitable for consistent use without overheating under normal working conditions.

12V Lithium Battery System

Powered by a 12V lithium battery, the machine operates cordlessly. This is particularly useful on construction sites where mains sockets are scarce or where trailing leads would be a trip hazard. The battery is included in the package.

12000R/min Vibration Frequency

The vibration mechanism runs at a high 12000R/min, a feature common in vibration tiling tools. This frequency is selected to allow the tile to settle naturally into the adhesive bed, helping to achieve a solid bond with fewer voids.

Suction and Handling Capacity

The machine uses a suction pad system to grip the tile securely during placement. Two key specifications define its handling capability: suction diameter and maximum loading weight.

137mm Suction Diameter

The 137mm suction diameter is sized for medium to large format ceramic tiles. This diameter provides a stable grip over a broad area, reducing the risk of the tile tilting or slipping during positioning.

110kg Suction Loading

With a maximum suction loading of 110kg, the machine can handle heavy tiles. This loading capacity exceeds that of many basic vibration tiling tools, allowing you to work with large format floor tiles that have significant weight.

Practical Benefits for Tiling Work

Using a vibration tiling machine has several practical advantages over manual techniques. This model brings those benefits within reach for both tradespeople and advanced DIY users.

Reduced Physical Strain

The combination of suction grip and motorised vibration means you do not need to tap each tile into place by hand using a rubber mallet. This reduces wrist and arm strain, especially during long tiling sessions.

Consistent Placement

Because the vibration is uniform at 12000R/min, the tile receives the same settling motion each time. This consistency helps avoid unevenness that can occur with manual hammer-and-beater methods.

Portability with 110V US Power

The machine is supplied with 110V US power specifications. This means it is ready for use on standard US job-site power outlets when charging the lithium battery, making it practical for contractors working in North America.
